Introduction to Pipeline Cleaning Pig

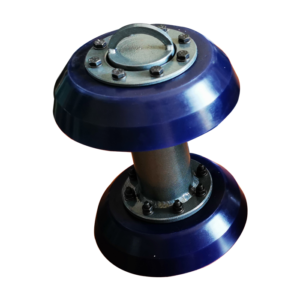

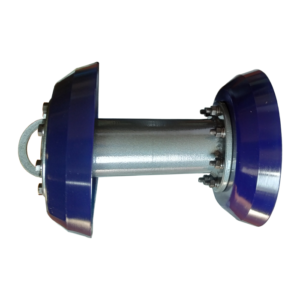

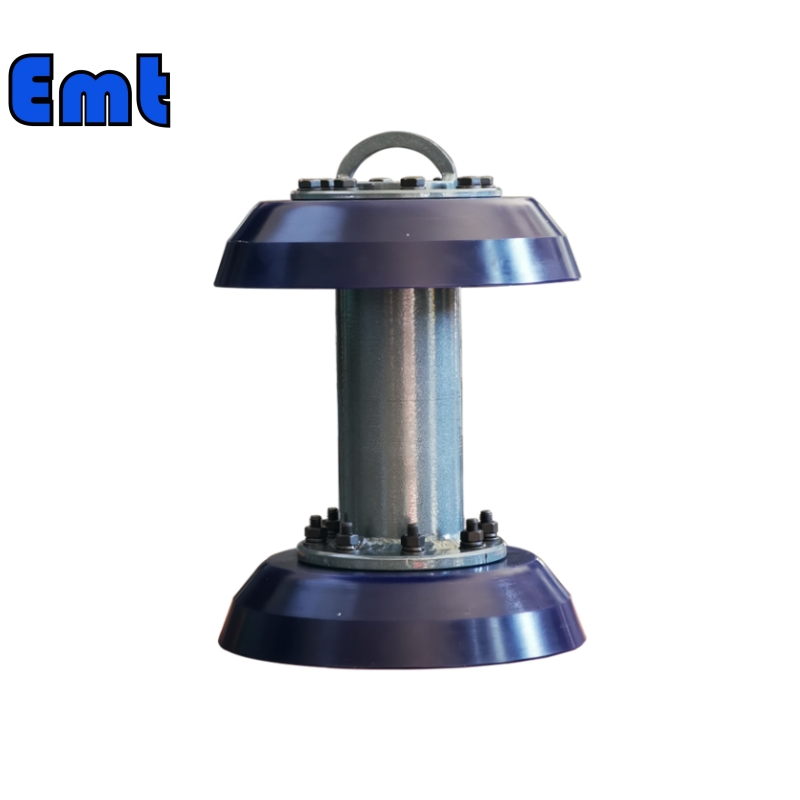

The EMT Blue 2-cup Pipeline Cleaning Pig is one of the major products of our EMT company. It has two cups, belonging to mechanical cleaning pig type. The blue color is different from common red pigs. The pig color is customizable.

The mechanical body has many materials to choose from. For example, 316SS, 304SS, 316LSS carbon steel, and so on.

The material of the cups is polyurethane.

Products according to the pipeline situation and design requirements, the use of suitable parts for various combinations, can be customized composite wire brush, caliper plate, magnetic frame, positioning tracker, etc., is a multi-purpose pig, for pipeline cleaning, testing, can carry out a variety of pipeline work tasks.

Technical parameters of pig cup accessories

1, working medium temperature: -40 ℃ -100℃

2. Overall length of the product: 1.4 times DN

3, the best running speed of the product: 1 m/s

4, the minimum bending radius of the product: D≦150mm, r should meet ≧2.5DN

When D≧150mm, r should meet ≧1.5 times DN

5, the overall length of the product: ordinary model ≧1.3 times DN, combined type ≧1.4 times DN

Can be customized upon request

6, our company now provides the following cup accessories products

(1), Shaw A75, 80, 85, 90 hardness TDI, MDI raw materials,

(2), Shaw A80, 85 hardness solvent-based products.

The above raw material products can be customized according to requirements.

Conventional Shaw 80 Hardness Polyester Pigging Equipment Material Performance Table

Hardness (Shore A) 80

300% fixed elongation strength (Mpa) >12

Tensile strength (Mpa) >50

Elongation at break (%) 550

Tear strength (KN/M) >90

Wear (CC/1.61) 0.015
