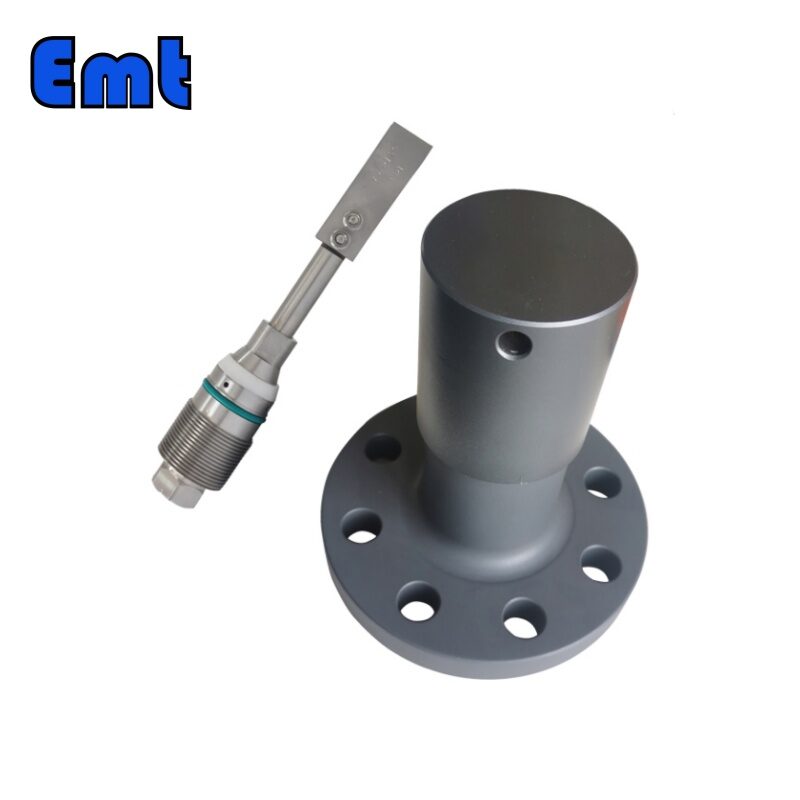

Introduction To EMT Corrosion Coupon Holder

A corrosion coupon holder is a vital component used to monitor and evaluate the corrosion rate within pipelines. This device serves an essential function by securely holding corrosion coupons—small, standardized pieces of metal that match the material of the pipeline. Technicians insert these coupons into a pipeline to measure the corrosion levels over time.

The design of the corrosion coupon holder allows for easy insertion and retrieval of these metal coupons. This setup enables precise monitoring of the corrosive processes affecting the pipeline’s material. Besides, the holder can accommodate various numbers of coupons. Based on specific monitoring needs, customization is available.

Different lengths of holders are available, each influencing the data collection’s effectiveness. Longer holders can expose coupons to different flow dynamics and more extensive sections of the pipeline, providing a comprehensive snapshot of the corrosion that occurs. Users can choose the appropriate holder length based on the specific section of the pipeline they wish to test.

The flexibility in the number of coupons that a holder can carry is another beneficial feature. Depending on the severity of the corrosion or the granularity of the data required, operators may opt for a single coupon or multiple coupons within the same holder. This versatility makes the corrosion coupon holder an adaptable tool suitable for various industrial environments and applications.

EMT Coupon Types

Our EMT company provides three different kinds of coupons. Customization is available. Different sizes are also available. If you have any needs, contact us. We have our professional teams to help you solve your problem.

Name	Strip Coupon	Multihole Strip Coupon	Disc Coupon

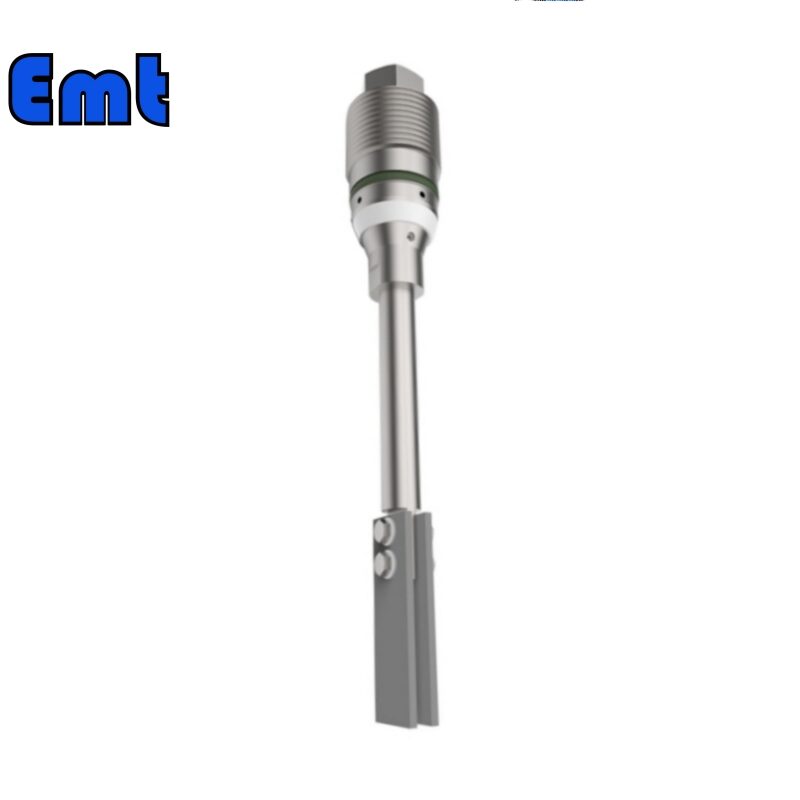

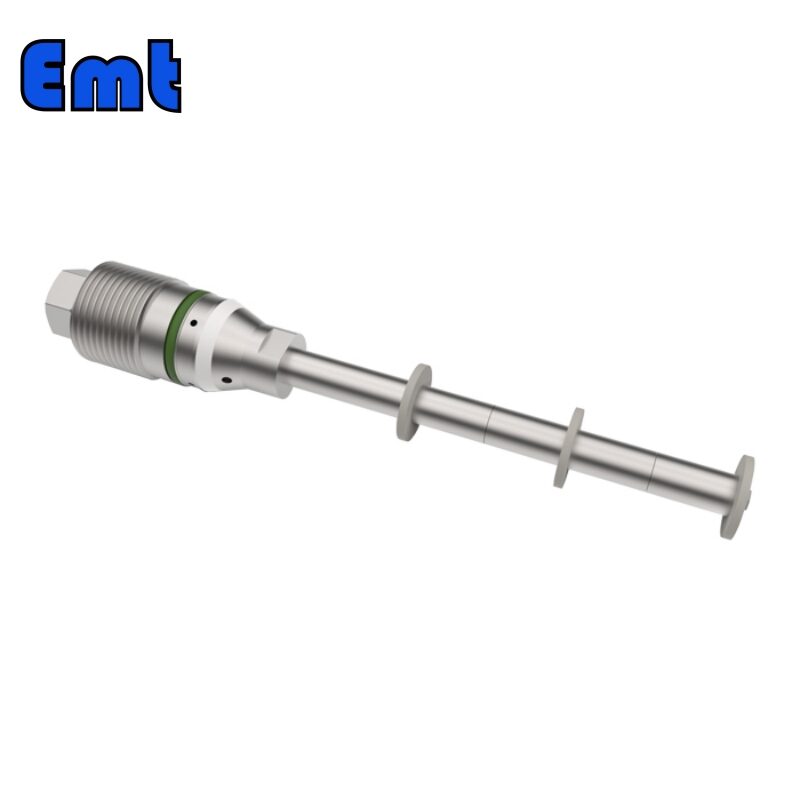

Applications	Commonly used for most evaluations.	Use with low-pressure access equipment or through narrow ports that a standard 3/4 inch wide coupon cannot pass.	These circular coupons work in multiple disc monitoring applications.
Size	3”*3/4”*1/16” (76.2mm*19.0mm*3.2mm)	3”*1/2”*1/16” (76.2mm*12.7mm*3.2) With mounting holes	Φ1.25”(31.8mm)Thickness 1/16”(3.2mm)

EMT Corrosion Coupons are crafted from a variety of materials including Stainless Steel 304, Stainless Steel 316, DSS F51, Carbon Steel A105N, and Inconel 625, catering to diverse industrial needs. They operate effectively within a temperature range of -20 to 120 degrees Celsius, making them versatile for extreme conditions. The coupons are easy to use. Therefore it allows for straightforward installation and retrieval without specialized tools. They deliver high accuracy in monitoring corrosion rates, facilitating informed maintenance decisions that extend pipeline longevity. Additionally, these coupons combine efficiency with cost-effectiveness. They are designed for long service life, reducing the frequency of replacements and lowering long-term monitoring costs. Overall, EMT Corrosion Coupons are a reliable choice for enhancing corrosion management systems. This ensures the operational integrity of pipeline networks across various industries.
