Description

Quick Actuating Closures are mechanical devices designed for circular openings on pressure vessels or pipelines. These closures are essential for applications that require frequent access for maintenance, inspection, or cleaning, making them incredibly valuable in industries such as natural gas, oil, and pipeline operations. Here’s an expanded look at the key features and applications of these closures:

1. Parameters for EMT Quick Actuating Closures

• Nominal Diameter. : Up to ≤1800mm, accommodating large-scale industrial equipment and pipelines.
• Pressure Capability. : Designed to handle pressures up to ≤40 MPa, suitable for high-pressure applications in various industries.
• Temperature Range. : Operational between -50°C and 300°C, allowing for use in a variety of environmental conditions, from extremely cold to very hot.
• Material Composition. : Primarily constructed from carbon steel for strength and durability, with options for stainless steel or other alloy composites based on specific needs for corrosion resistance or additional strength.
• Sealing Mechanism. : Features a self-tightening lip seal that enhances the reliability of the seal, ensuring safety and integrity under fluctuating pressures and temperatures.
• Safety Features. : Includes safety interlocks and a self-locking mechanism to prevent accidental opening when under pressure, ensuring operational safety.

2. Design and Structure

• Mechanical Components. : Quick Actuating Closures typically consist of a cylindrical body flange, cover, locking mechanisms like hooks or clamps, seals, safety interlocks, opening mechanisms, swing arms, and spool pieces when required.
• Material and Construction. : The main pressure-bearing parts are made from integral forgings of low-alloy, high-strength carbon steel, also ensuring robustness and durability.
• Corrosion Resistance. : These closures are treated with corrosion-resistant overlay welding techniques, suited for various operational conditions and capable of undergoing hydrogen and sulfur resistance tests.

3. Safety and Operational Features

• Rapid Operation

  Quick Actuating Closures are designed with efficiency and speed in mind, so incorporating advanced locking-ring mechanisms to facilitate quick access:

  • Locking-Ring Mechanism. : This feature allows the closure to be securely locked or unlocked with a simple mechanical action, significantly reducing the time and effort needed compared to bolted flange closures.
  • Ease of Use. : The design ensures that a single operator can open and close the closure using less than 200N of force. This low force requirement is crucial in reducing physical strain and enhancing the ease of operation, particularly in emergency or frequent access scenarios.
  • Time Efficiency. : The operational design enables the closure to be fully opened or securely closed in under a minute, maximizing productivity and reducing downtime during critical maintenance or inspection activities.

• Enhanced Sealing:

  • Utilizing a unique self-tightening lip seal structure, Quick Actuating Closures provide safer and more reliable sealing compared to traditional methods.

• Integrated Safety Lock System

  Safety is paramount in the design of Quick Actuating Closures, particularly to prevent accidents related to premature or incorrect opening:

  • Self-Locking Function. : The safety lock system automatically engages when the closure is pressurized, preventing any attempt to open the closure. This feature is crucial for ensuring that the closure cannot be opened while the system is under pressure.
  • Depressurization Check. : The system includes sensors or mechanical indicators that ensure the container is fully depressurized before the closure can be unlocked and opened. This prevents the sudden release of pressurized contents, which could lead to accidents or injuries.
  • Safety Compliance. : The integrated safety lock system is designed to meet strict safety standards and regulations, also ensuring that the closures adhere to industry best practices and safety requirements.

4. Standards and Compliance

• Design Standards. : These closures are designed according to ASME VIII Div.1 and analyzed with ANSYS for finite element stress to ensure optimal performance under pressure.
• Compliance. : Fully compliant with GB150 and other relevant regulations, and adhere to the SY/T0556-2018 industry standard. Which specifies technical requirements for quick-opening blind plates.

5. Applications of Quick Actuating Closures

Quick Actuating Closures are engineered to meet the demanding requirements of various high-pressure environments, especially in the oil, gas, and petrochemical industries. Their design allows for rapid opening and closing mechanisms. It also crucial for ensuring operational efficiency and safety in many industrial applications.

• Oil and Natural Gas Pipelines. : Because these closures are crucial for pipeline systems where frequent and rapid access is needed for inspection, maintenance, or cleaning operations. So they enable quick access to the pipeline interiors, facilitating the use of pipeline inspection gauges (PIGs).

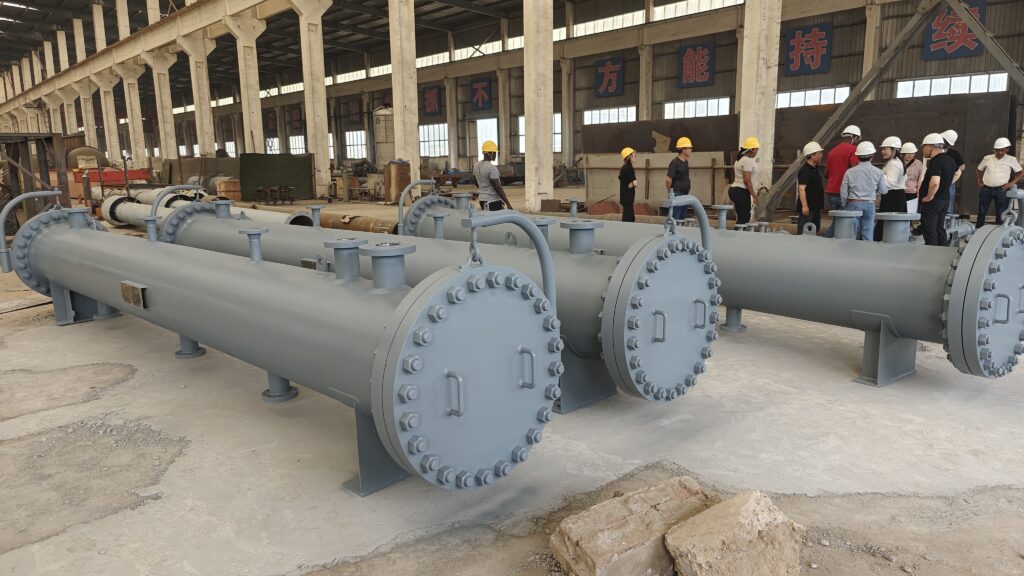

• Pig Launchers and Receivers. : Used at the starting and receiving points of the pigging process, these closures allow for the easy insertion and retrieval of cleaning or inspection devices without significant system depressurization or downtime.
• Filters and Separators. : In systems that require regular cleaning of filters or the separation of mixed substances (like oil, water, and gas), so quick actuating closures provide the necessary access with minimal effort and interruption to process flows.
• Autoclaves. : These high-pressure steam sterilizers benefit from quick actuating closures to ensure that they can be quickly and safely opened and closed for loading and unloading, particularly in industrial or medical applications.
• Pressure Vessels. : Any pressure vessel that requires frequent access, such as reactors, storage tanks, and heat exchangers, can benefit from the use of these closures to ensure safety and efficiency during operation and maintenance cycles.
