Description
1. Introduction

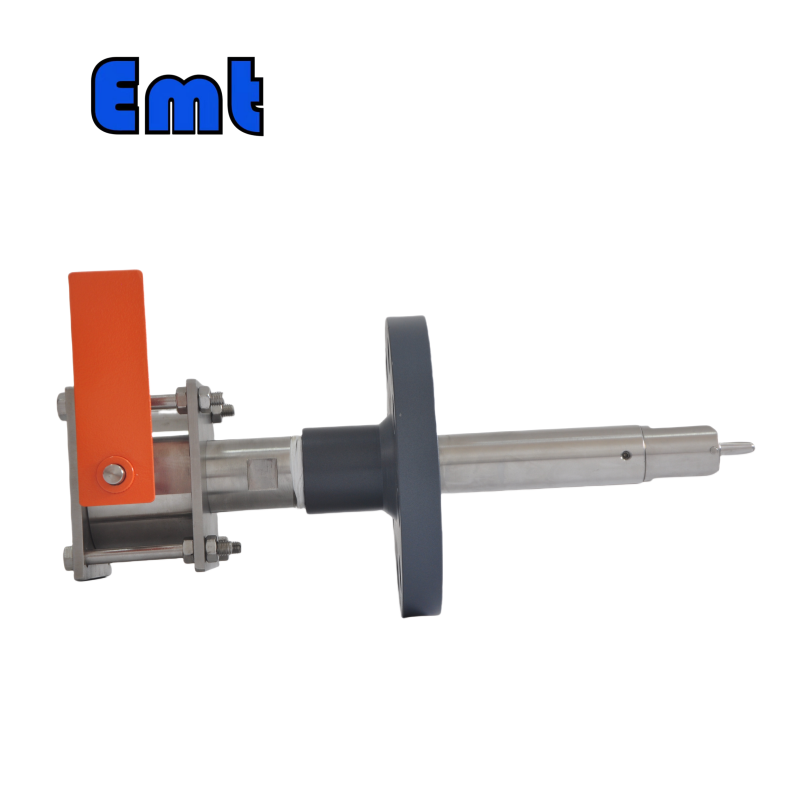

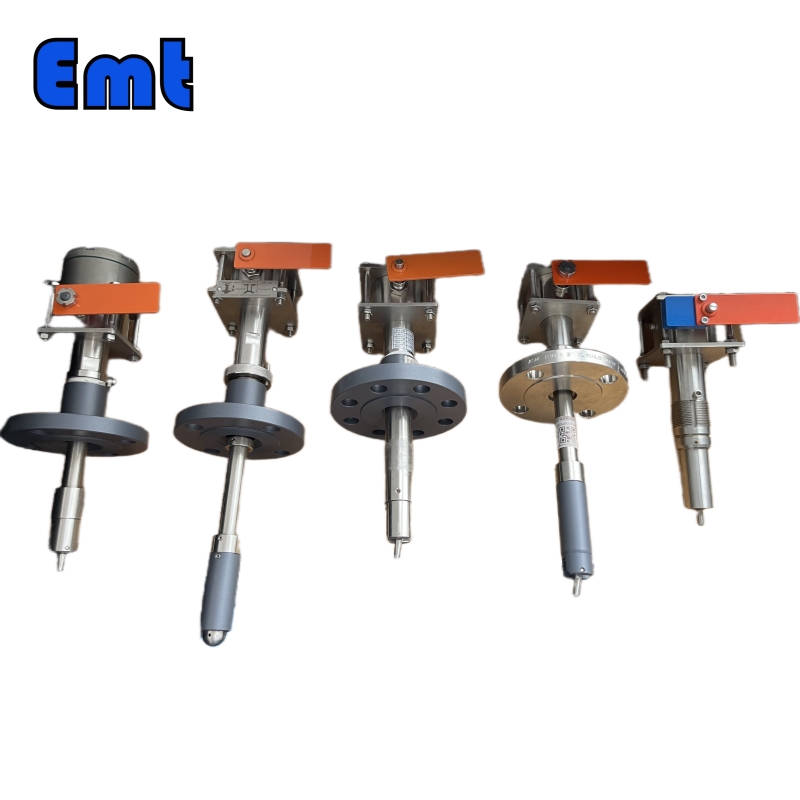

The EMT Pig Signal Detector is an advanced intrusive bidirectional triggering pig detector specifically designed to monitor pig passage through pipelines. This detector can be equipped with multiple display options, including B, C, D, and CD displays, each providing distinct indications and actions when a pig passes through the pipeline.
- B Display: The indication flag shifts from horizontal to vertical.
- C Display: The indication flag shifts from horizontal to vertical, and the SPDT or DPDT switch activates and remains active.
- D Display: A digital time display begins counting and records the exact trigger time; the SPDT or DPDT switch activates and remains active until a factory-set time, after which the display returns to standby.
- CD Display: The indication flag shifts from horizontal to vertical. The SPDT or DPDT switch activates when the trigger deflects a certain angle and resets after the trigger resets; the digital time display functions similarly to the D display.
The SN2-TQZ detector connects via a 2″ flange. Models ending in REUV denote an upper ball valve handled under pressure, mounted above the foundation. Models ending in REDV denote a lower ball valve handled under pressure, mounted below the foundation.
2. Installation
Prior to installing the SN2-TQZ pig detector, ensure the pipeline is prepared with a flange that matches the installation specifications of the detector. The flange should adhere to ANSI B 16.5 standards or customized standards, with a space of 150mm from the flange top face to the internal pipe wall or as per custom measurements.
- Preparation: Place a compatible sealing gasket (3.2mm for RF flanges) between the two flanges, ensuring the indicator’s trigger action aligns correctly with the pipeline.
- Insertion: Insert the trigger end into the pipeline and secure the flange seat to the pipeline interface using screws.
- Display Adjustment:
- For B, C, and CD displays: Loosen the four nuts under the display’s square flange, rotate the flag display to the desired position, and retighten the nuts.
- For D displays: Unscrew the knurled nut under the display, adjust its direction, and retighten.
3. Maintenance
Regular maintenance ensures the effective operation of the SN2-TQZ pig detector.
- Seal Replacement: If leakage occurs at the flange seat, the seal is likely damaged and needs replacing. External seals can be replaced directly, while internal seals should be replaced by the manufacturer.
- Flange Seat Removal: For non-retrievable pig detectors, ensure the pipeline or system is depressurized before removing the flange seat.
- Core Removal Under Pressure: Special tools are required for removing the core of retrievable pig detectors under pressure.
- For SN2-TQZ-x-REDV models: Use a special long bolt, standard nut, and common spanner.
- For SN2-TQZ-x-REUV models: Special tools are necessary for safe removal under pressure.
By adhering to these guidelines, the EMT SN2-TQZ pig signal detector can be effectively installed, adjusted, and maintained, ensuring reliable pig passage monitoring and system integrity.
4. Features and Advantages
The Pig Signal Detector offers numerous beneficial features that enhance its practicality and efficiency.
Ease of Use
Designed with user-friendliness in mind, the Pig Signal Detector integrates effortlessly into existing maintenance routines. Its intuitive interface reduces the learning curve, making it accessible even to those with minimal technical training. This ease of use not only saves time but also minimizes the potential for operational errors, ensuring a smooth and efficient workflow.
Precision and Durability
Precision is at the core of the Pig Signal Detector’s design. It provides highly accurate readings, ensuring that all pigging operations are conducted with pinpoint accuracy. This precision is crucial for maintaining the integrity and safety of pipeline systems. Additionally, the Detector is constructed from high-quality, durable materials that can withstand harsh environmental conditions. This durability ensures that the Detector remains reliable over long periods, reducing the need for frequent replacements and maintenance.
Compact and Flexible
The Detector’s compact size and flexible design make it easy to install in a variety of pipeline configurations. Whether dealing with tight spaces or complex pipeline networks, the Detector’s adaptable nature ensures it can be positioned optimally for maximum effectiveness. Its lightweight and streamlined form factor not only simplifies installation. But also enhances its portability, making it a convenient tool for maintenance crews. This flexibility ensures that the Detector can operate efficiently and accurately, contributing to the overall cost-effectiveness of the maintenance process.
5. Customization and Support
At EMT Pigging, we focus on delivering not just products but customized solutions to meet the unique requirements of our clients.
Tailored to Your Needs
Our extensive range of Pig Signal Detectors is for versatility, allowing us to cater to a wide array of client needs. We understand that each pipeline system has its unique challenges. Whether they involve varying pressure levels, extreme temperatures, or specific chemical compatibilities. Therefore, we offer customized solutions that address these specific requirements. Our team works closely with clients to understand their operational environment and tailor our products to meet those exact specifications, ensuring optimal performance and compatibility.
Assurance Through Sampling
We stand by the quality and performance of our Pig Signal Detectors. To provide clients with confidence in our products, we offer samples for testing and verification. This allows clients to conduct their own assessments and ensure that the Detectors meet the stringent standards required for their operations. By allowing clients to verify product performance firsthand, we build trust and ensure satisfaction with our solutions.
Unmatched Customer Support
Customer satisfaction is a cornerstone of our service philosophy. We pride ourselves on our exceptional customer support, characterized by rapid response times and swift delivery. Our dedicated support team is available 24/7 to assist with any queries or issues that may arise, ensuring continuous support throughout the purchase process and beyond. This commitment to customer service ensures that our clients have a reliable partner in their pipeline maintenance operations, providing peace of mind and fostering long-term relationships.
