EMT Flanged Injection Quill

The Flanged Injection Quill can fit inside an inch diameter schedule 40 flanged additive port. The injector flange is to be sandwiched between an additive port flange and a drilled & tapped blind flange with 1/8” Teflon gaskets.

Category:

Description

Typically, operators use an Injection Assembly in conjunction with High-Pressure Access Systems. The system comprises an Access Fitting body with a side Tee through which fluid transfer occurs. You can either thread or weld the Tee. When welded, the Tee can be either flanged or buttweld nipples. Threaded Tees, on the other hand, require an NPT-tapped hole on the fitting body. The Tee size is determined based on the injection rate and the viscosity of the injected chemical.

Injection Quill

Parameters

NamePipeline Flanged Injection Quill
MaterialStainless Steel 304、Stainless Steel 316、DSS F51、Carbon Steel A105N、Inconel 625
Operating Temperature-20±120
Feature1. Easy Operating
2. High Accuracy Long Life
3. High Efficiency, Low cost
PaymentTT/LC
AdvantageFirstly, they are lightweight and flexible.
Secondly, nice Injection efficiency.
At last, accurate location tracking.

chemical-injection-quill

Selection Model of Flanged Injection Quill

Model
SIFlanged Injection Quill
-CodePlug
PxxxTypeMaterialSealing Material
0No Request0CS0No Request
1Hollow Plug Body1316SS3DSS1Viton O-Ring / PTFE Primary Packing
2Solid Plug Body2316LSS4INCONEL2HNBR
– CodeInjection Nut
NxxConnection SizeMaterial
0i.e. No Request0i.e. CS
1i.e. 1/4″1i.e. 316SS3i.e. DSS
2i.e. 1/2″2i.e. 316LSS4i.e. INCONEL
– CodeInjection Tube
Sxxx-Lx″Connection SizeMaterialNozzleLine size(x″)
0No Request0CS0i.e. No RequestThe most effective position for injection is generally at the center of the pipe
1i.e. 1/4″1i.e. 316SS1i.e. Open
2i.e. 1/2″2i.e. 316LSS2i.e. Quill
3i.e. DSS3i.e. Cap & Core
4i.e. INCONEL
– CodeNipple and Valve(or end Flange)of Tee
TxxConnection SizeMaterial
0i.e. No Request0i.e. CS
1i.e. 1/4″Nippleai.e. 1/4″Nipple and Valve1i.e. 316SS
2i.e. 1/2″Nipplebi.e. 1/2″Nipple and Valve2i.e. 316LSS
3i.e. 3/4″Nippleci.e. 3/4″Nipple and Valve3i.e. D SS
4i.e. 1″Nippledi.e. 1″Nipple and Valve4i.e. INCONEL
5i.e. 1/4″Flangeei.e. 1/4″Nipple end Flange
6i.e. 1/2″Flangefi.e. 1/2″Nipple end Flange
7i.e. 3/4″Flangegi.e. 3/4″Nipple end Flange
8i.e. 1″Flangehi.e. 1″Nipple end Flange
For Example,  SI-P221-N12-S122-L4″-T22

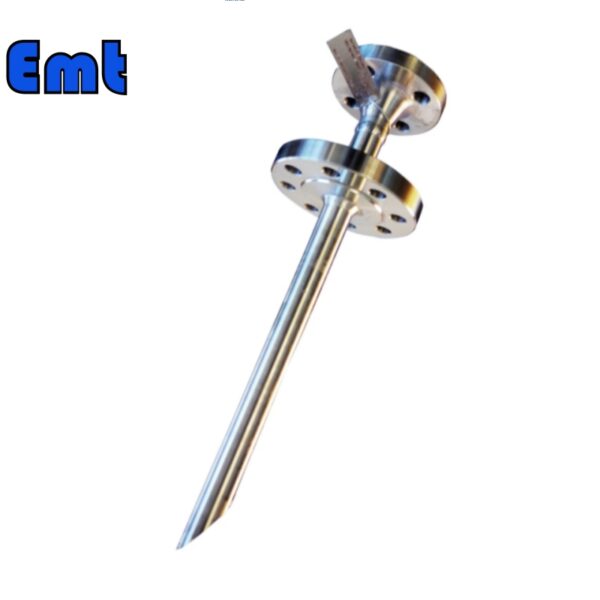

Flange chemical injector

The Flange Connection of Flanged Injection Quill

The Flanged Injection Quill can fit inside an inch diameter schedule 40 flanged additive port. The injector flange is to be sandwiched between an additive port flange and a drilled & tapped blind flange with 1/8” Teflon gaskets.

Construction: Flanged Injection Quill assembly shall come complete with injector assembly, flange gaskets, and appropriate fittings. The manufacturer constructs the solution tube from an appropriate material, and it is long. The design of the injector should allow for easy insertion and withdrawal without binding or bending of the diffuser. All wetted components must be compatible with the chemical services.

The direct injection into the pipeline‘s core ensures that the reagents dnot gather around the sides. This can cause pipework corrosion and degradation and also lessens the effective contact with the substrate. This, in turn, enhances the durability and efficiency of the chemical reagents infused directly into the pipeline with the use of a dosing pump.

Injection quills are space-efficient and their careful design guarantees a practical and cost-effective method. They increase the lifespan of installed pipework and improve the efficiency of chemical reagents dosed directly inline.
