Description

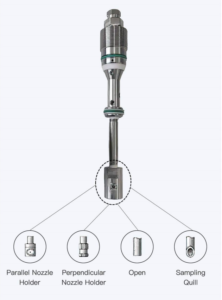

Chemical injection nozzles are critical components in various industrial processes, including oil and gas, water treatment, and chemical processing. These nozzles ensure precise and controlled delivery of chemicals into pipelines or vessels. Here are four common types of chemical injection nozzles at below:

1. Quill Injection Nozzles

Quill injection nozzles extend into the pipeline or vessel, allowing operators to inject chemicals directly into the flow stream. This design ensures thorough mixing and distribution of the chemical within the fluid. Operators commonly use quill injection nozzles in applications requiring precise placement of the chemical to achieve optimal results.

2. Spray Injection Nozzles

Spray injection nozzles disperse chemicals in a fine mist or spray pattern, enhancing the contact area between the chemical and the fluid. This type of nozzle is ideal for applications requiring rapid mixing and reaction, such as in water treatment systems where chemicals need to react quickly with contaminants. Spray nozzles can be adjusted to control the spray pattern and coverage area.

3. Tee Injection Nozzles

Tee injection nozzles are integrated into a pipeline tee, allowing chemicals to be injected at the intersection of the main flow and the branch. This design facilitates smooth and efficient mixing of the chemical with the primary flow. Tee injection nozzles are often used in systems where space constraints or specific pipeline configurations require a compact and effective injection solution.

4. Diffuser Injection Nozzles

Diffuser injection nozzles use a series of small holes or slots to distribute the chemical evenly across the flow stream. This type of nozzle ensures uniform mixing and minimizes the risk of localized high concentrations of chemicals. Diffuser nozzles are particularly useful in applications where consistent chemical distribution is critical, such as in large-scale water treatment or industrial processes.

Selection Model

Parameters of Chemical Injection Quill
